Object identification as the basis for intelligent data networking in manufacturing

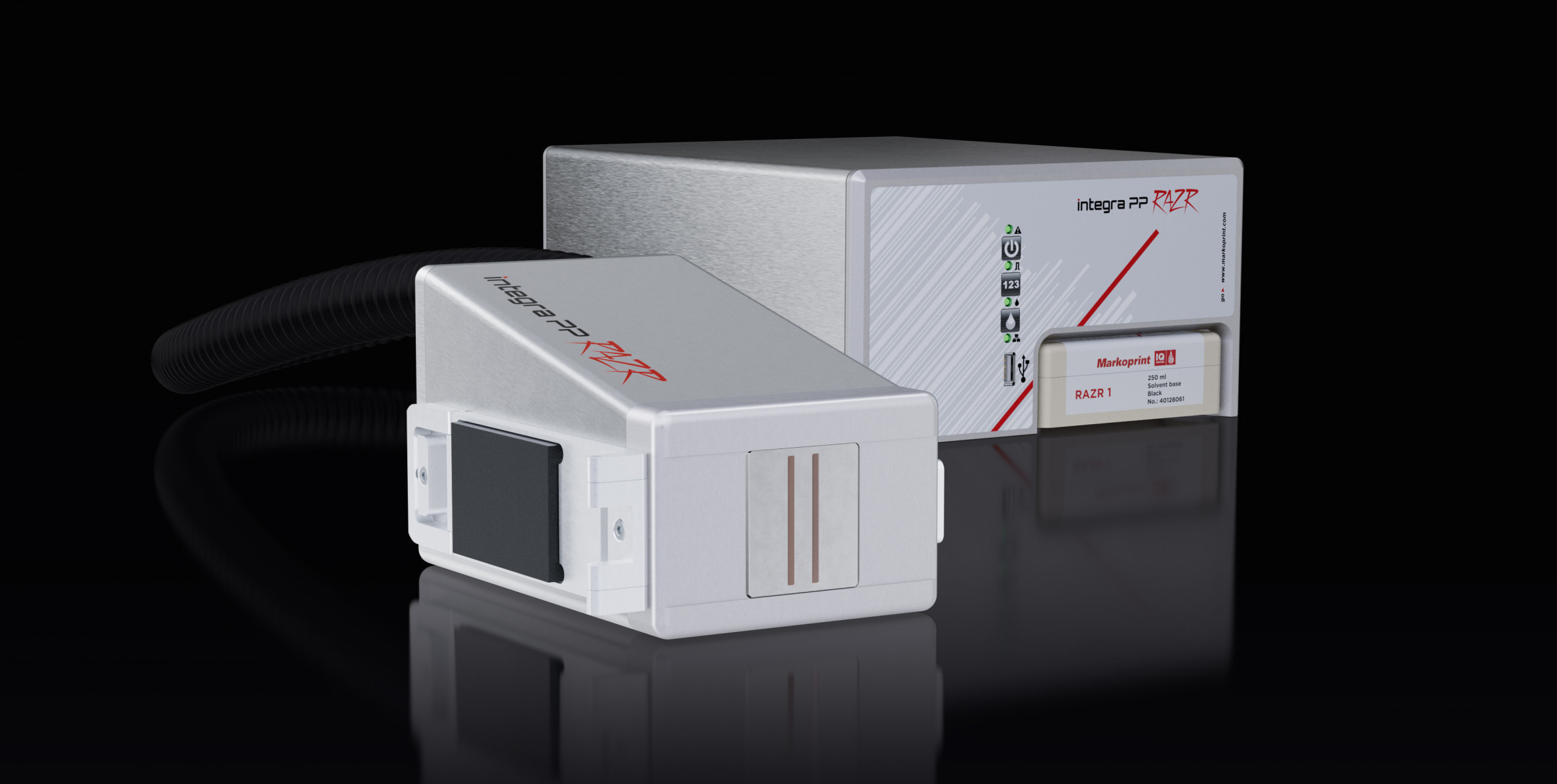

Markoprint Integra PP RAZR © Bluhm

Only when objects carry a visible identification are they recordable for databases. Smart, industrial marking, for example by means of serial numbers, bar or QR codes, was shown by Bluhm Systeme at the Hannover Messe in Hall 6, Stand E12.

Low-wear label dispenser with reduced compressed air consumption

The Legi-Air 4050 E has a modular design. Due to the motorized operation of the winder and unwinder, the print module wears less. At the same time, the prints are precise. The modulated vacuum reduces compressed air consumption by up to 80 percent. The Legi-Air 4050 E meets all the requirements of EN415-10 as standard.

Lightworx active © Bluhm
Lightworx active
© Bluhm

Fiber laser marker with workstation

Lightworx, a professional workstation with integrated, powerful fiber laser, is suitable for entry-level industrial laser marking. Its service life reaches 100,000 hours. The marking fields range in size from 100 x 100 to 300 x 300 millimeters, making them perfect for nameplates, housings or tools. The standalone solution is about the size of a fridge-freezer.

Razor sharp and lightning fast

With print speeds of up to 150m/min at 300 dpi, the Markoprint Integra PP RAZR inkjet printer applies clear text information, codes and graphics to variable surfaces at above-average speeds. A print quality of up to 600 dpi and a maximum print height of 34 mm are possible. Intermediate tank and double nozzle channels make the Performance Piezo triple process-safe.

Extremely fast drying

The Linx 8900 inkjet printer adapts easily to tight production conditions. A six-meter printhead hose provides more flexibility, and the printhead only needs to be cleaned every three months. Maintenance takes about 30 minutes and can be performed by your own experienced personnel. The Linx 8900 continuously monitors ink and solvent levels and automatically adjusts ink viscosity as required.

Intuitive high-speed print controller

The Markoprint X4Jet enables different printing technologies to be controlled simultaneously or alternately. With a font size of 3 to 400 mm, it prints primary and secondary packaging on both sides, even with particularly large barcodes, company logos and quality marks. The control system is available for HP, Trident, Xaar and Funai printing technologies.

Markoprint X4Jet © Bluhm
Markoprint X4Jet
© Bluhm

For large character in rugged environments

The recirculating ink system of the Markoprint Integra PP 108 ensures that no nozzles fail and the print image remains brilliant at all times, even in harsh production environments. A unique feature is the Bicolor variant, which uses two ink colors simultaneously, for example for GHS labeling in black and red or green and blue.

For pallets and large containers

The AP 182 pallet labeler can apply two or three different labels on different sides. It achieves top speeds of 120 pallets per hour for two-sided marking and 90 pallets per hour for three-sided marking. The swiveling applicator head dispenses the individually printed labels over a short distance by air blast or directly onto.

About Bluhm Systems

Bluhm Systeme is a full-service provider of cross-industry marking solutions. In addition to label printers and dispensers and special labeling systems, the product portfolio includes inkjet printers, laser markers and direct thermal transfer printers. The company also produces labels for all applications. The range is completed by accessories such as inks, software and ribbons, as well as various financing options, product training, a large service network and a 24-hour hotline.
